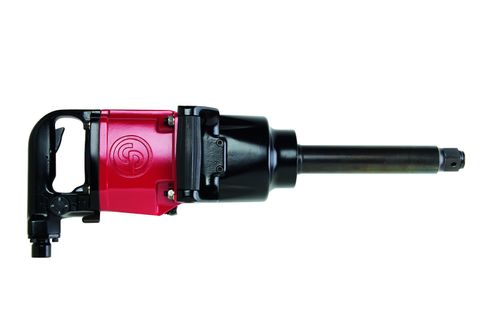

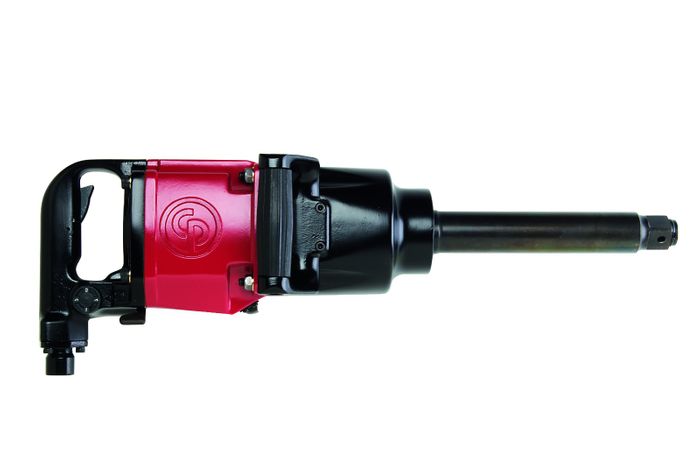

Impact Wrench 1'' 6'' Anvil CP

Stock Code:
CP5000
Price:
$4,527.32 inc GST

Description

Benefits
• Our strongest and most powerful 1" impact with an extended anvil
• Operator productivity
• Convenient reverse valve for ease of use
• Ideal for high volume tire work on trucks, buses, and heavy equipment

Features
• 1" impact wrench
• Rocking dog clutch
• 4-position power settings throttle for ease of use
• Convenient reverse valve
• Plus 7" extended anvil


Model CP5000
Part number T024585
Actual air consumption 25 l/s 52 cfm
Air inlet thread size 1/2 "
Average air consumption 5.6 l/s 11.88 cfm
Blows per minute 540
Box dimensions 680x240x170 mm
Clutch type Pinless rocking dog
Free speed 3700 rpm
Handle type D-Handle Inside Trigger
Length 572 mm 22.5 "
Maximum Torque (reverse) 3390 Nm 2500 ft.lbs
Min. hose size 13 mm 1/2 "
Net weight 16.2 kg 35.71 lb
Power/weight ratio 209.3 Nm/kg 70 ft.lb/lb
Socket retainer Dual (hole+friction)
Sound Power 114 db(A)
Sound pressure 103 db(A)
Square drive 1 "
Vibration 8.5 m/s²
Vibration ISO ISO-28927-2
Vibration uncertainty (K) 2.6 m/s²
Working Torque Range (fwd) 240 - 2,800 Nm 185 - 2,065 ft.lbs
