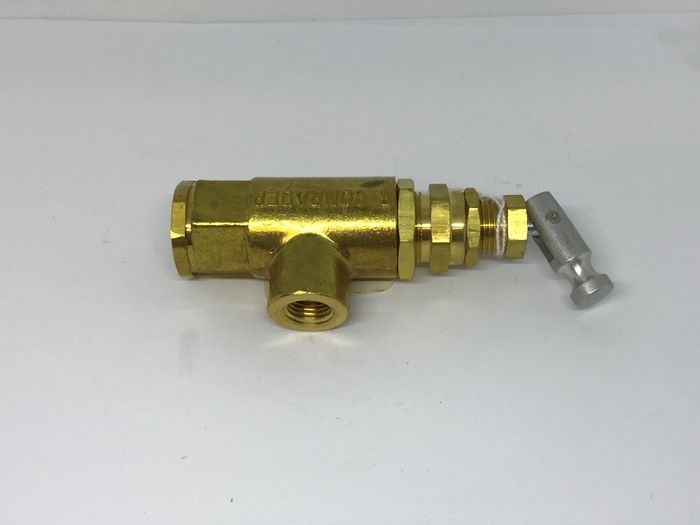

Pilot Hand Unloader Valve 500psi 3/8" x 1/4"

Stock Code:
RCLHU/500
Price:
$271.60 inc GST

Description

RCL-S

Operating Pressure: 20-1200 psi
Operating Temperature Range: -15° to 400°F
Inlet Connection Type: Female NPT
Inlet Connection Size: 3/8? (-6)
Outlet Connection Type: Female NPT
Outlet Connection Size: 1/4? (-4)

Conrader Pilot Valves are used on compressed air systems to control other devices using a pneumatic signal. The pilot valve is factory set in a pressure range with a unload (cut-out) and load (cut-in) setting. As the system pressure increases and the unload (cut-out) pressure is achieved, the pilot valve opens and pressurizes the line downstream of the pilot. As the system pressure deceases and the load (cut-in) pressure is achieved, the pilot valve closes and depressurizes the line downstream of the pilot valve.

The cyclic process can be used to operate the following:
•Throttle controls to regulate engine speed.
•Unloader valves to control a compressor.
•Drain valves to removed condensate from systems.
• Normally open/close valves.
•Shuttle valves

The manual hand unloader lever can be replaced with the dual control lockout for use on electric motor compressors to switch between start/stop and continuous operations.

Stock Level:
Out of Stock

Add To Quote
