Maxi Full Feature

Description

The compact and complete solution for your work shop

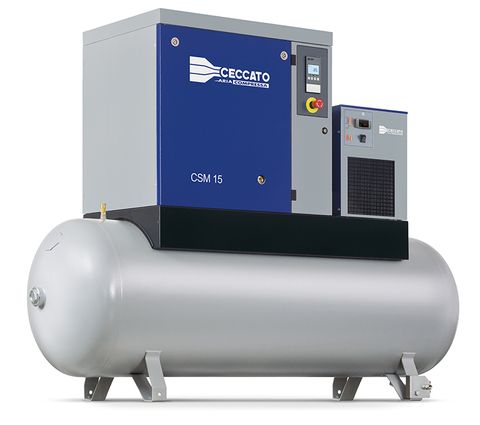

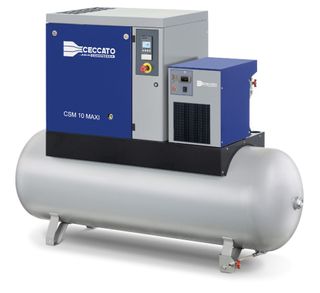

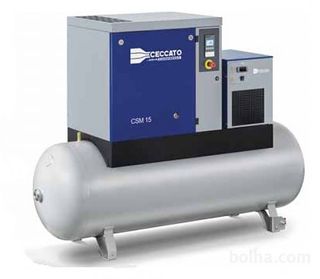

Very silent and compact our CSM Maxi range (7.5-20 HP, 5,5-15 kW) can be placed almost anywhere in the workshop without disturbing your working environment. Thanks to its noise levels, the compressor can be installed close to the usage point reducing installation costs, pressure drop, leakage risk and energy consumption.

Need a replacement for your old and noisy piston compressor?
Much more silent and efficient the CSM is the great alternative to piston compressor.
It is ideal for continuous and intensive use of air and it is featured in three versions:
floor mounted, tank-mounted or all-in-one

Easy Maintenance and accessibility
All the main components are strategically located inside the equipment in a smart way, allowing easy access for maintenance. This easy access, combined with long maintenance intervals ensure low operation cost for you.

High Performance
The new CSM is equipped with the newest generation of screw compressor elements - more modern and far more efficient. Being more efficient the compressor element not only generates more air but also consumes far less power - saving money on Energy.

Downloads

Code Image Product Name Details Stock Level Price Quantity
4152020465
CSM10/8-270D Rotary Screw Maxi 10hp 8 Bar FF
CSM10/8-270D Rotary Screw Maxi 10hp 8 Bar FF

Details

  • Noise Level:
    65 dB(a)
  • Dimensions:
    L1543 W720 H1337
  • Flow:
    L/sec 19 / CFM 40.3
In Stock
POA
4152020470
CSM15/8-270d Rotary Screw 15HP 8Bar FF
CSM15/8-270d Rotary Screw 15HP 8Bar FF

Details

  • Noise Level:
    69 dB(a)
  • Dimensions:
    L1543 W720 H1337
  • Flow:
    L/sec 27 / CFM 57.2
In Stock
POA
4152020472
CSM15/8-500d Rotary Screw 15HP 8Bar FF
CSM15/8-500d Rotary Screw 15HP 8Bar FF

Details

  • Noise Level:
    69 dB(a)
  • Dimensions:
    L1945 W720 H1408
  • Flow:
    L/sec 27 / CFM 57.2
Out of Stock
POA
4152020467
CSM10/8-500D Rotary Screw 10hp 8 Bar FF
CSM10/8-500D Rotary Screw 10hp 8 Bar FF

Details

  • Noise Level:
    65 dB(a)
  • Dimensions:
    L1945 W720 H1408
  • Flow:
    L/sec 19 / CFM 40.3
In Stock
POA
4152020461
CSM7.5/8-270d ROTARY SCREW MAXI 7.5HP 8BAR FF
CSM7.5/8-270d ROTARY SCREW MAXI 7.5HP 8BAR FF

Details

  • Noise Level:
    64 dB(a)
  • Dimensions:
    L1543 W720 H1337
  • Flow:
    L/sec 14.1 / CFM 29.9
In Stock
POA
