DRB 40-50 Fixed Speed Floor Mount

Description

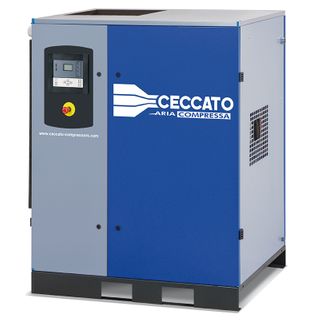

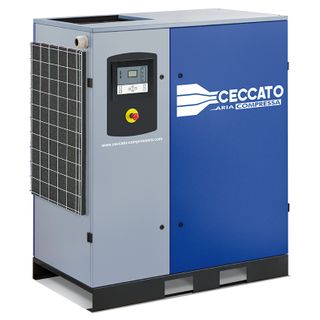

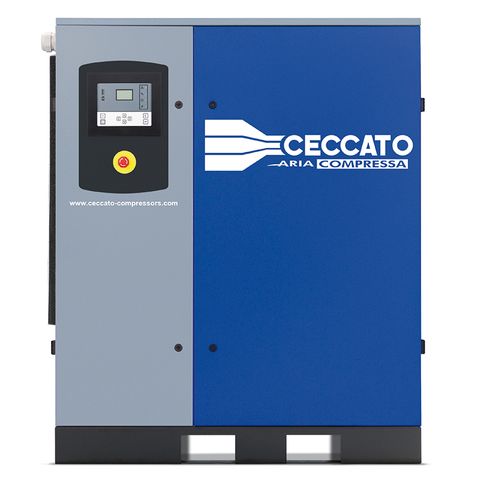

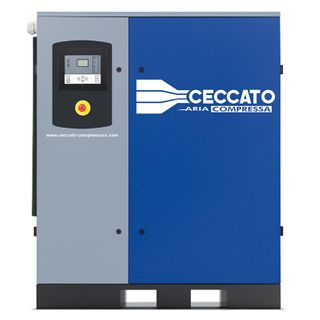

The DRB IVR range of variable speed compressors is equipped with a very efficient element, a direct driven transmission, a high frequency motor and a new converter. The DRB fixed speed version combines the same element with a high efficiency gearbox and IE3 motor.


Key Benefits:

• Highly reliable gear or direct driven transmissions for trouble-free operation
• Compact all-in-one system
• Lower energy consumption thanks to IE3 motors or IVR technology
• Outstanding and first-class components
• Optimized air flow and big air cooler make for a very efficient cool down
• Service components are easy to reach for smooth serviceability
• A wide range of options to customize your machine tailored to your needs

Downloads

Code Image Product Name Details Stock Level Price Quantity
DRB40/10
ROTARY SCREW 40HP 10BAR 162CFM

Details

  • Noise Level:
    70 dB(a)
  • Dimensions:
    L1320 W830 H1555
  • Flow:
    L/sec 76 / CFM 162
Out of Stock
POA
DRB40/7.5
ROTARY SCREW 40HP 7.5BAR 193CFM

Details

  • Noise Level:
    70 dB(a)
  • Dimensions:
    L1320 W830 H1555
  • Flow:
    L/sec 91 / CFM 193
Out of Stock
POA
DRB40/8.5
ROTARY SCREW 40HP 8.5BAR 177CFM

Details

  • Noise Level:
    70 dB(a)
  • Dimensions:
    L1320 W830 H1555
  • Flow:
    L/sec 83 / CFM 177
Out of Stock
POA
DRB40/13
ROTARY SCREW 40HP 13BAR 141CFM

Details

  • Noise Level:
    70 dB(a)
  • Dimensions:
    L1320 W830 H1555
  • Flow:
    L/sec 67 / CFM 141
Out of Stock
POA
