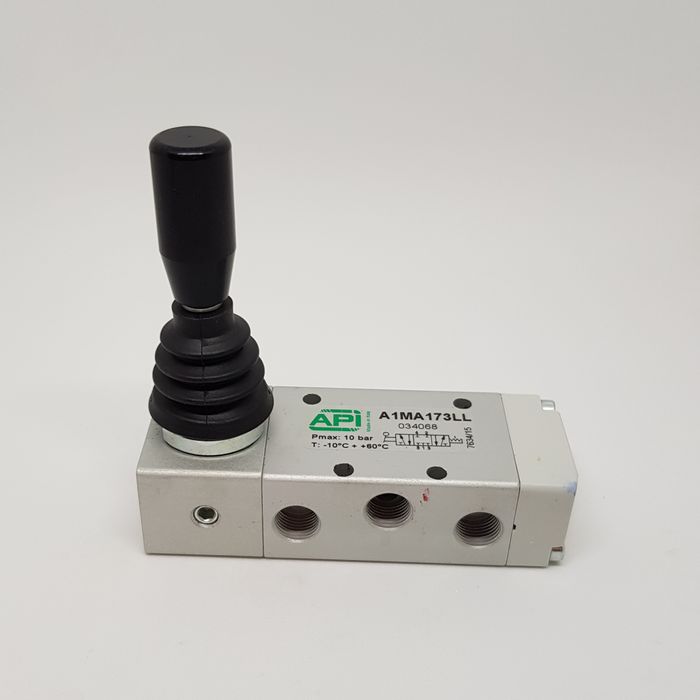

5.3 1/8 CC Lever/Lever Valve 3 Positions 034068

Stock Code:
A1MA173LL
Price:
$168.87 inc GST

Description

5/3 side lever, closed centres 3 positions

Valves series A1 - 1/8", 5/2 - 5/3 manually operated

Technical Data
Fluid - Compressed filtered air with or without lubrication. Lubrication, if started, must be continued
Pressure Range - 0 ÷ 10 Bar
Temperature Range - -10°C ÷ + 80°C
Orifice - 6.5mm
Flow - 650 NI/min at 6 bar with ?P 1 bar
Mounting - in any position
Materials:
Body - Anodized aluminum
Cover - Anodized aluminum
Bottom Plates - Delrin 500
Spool - Hard aluminum anodized
Distances - Fortron 1140 L4
Seals - Hydrogenated Nitrile Butadiene Rubber (HNBR)
Lever - Steel / Plastic

Series of spool valves, with static seals, high flow, for panel or sub-base mounting

Stock Level:
In Stock
