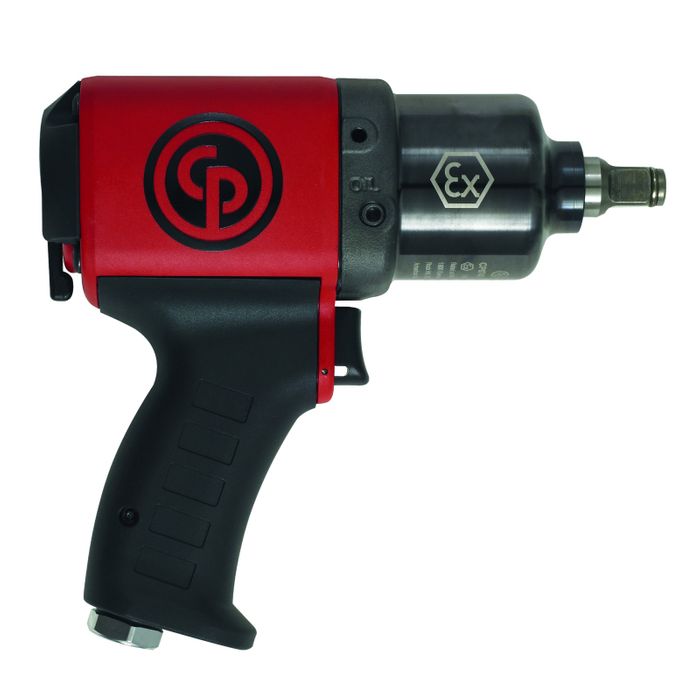

Impact Wrench 1/2'' Industrial Atex Explosion Proof

Stock Code:
CP6748EX-P11R KM
Price:
$1,182.04 inc GST

Description

Benefits
• Superior durability - designed for intensive use
• High torque - up to 800 ft.lb (1085 Nm)
• Comfortable and light weight

Features
• Twin hammer in oil bath and steel clutch housing for long life
• Extremely durable steel motor
• Dust-proof (IP6) and ATEX certified


Model CP6748EX-P11R ATEX
Part number 6151590570
Actual air consumption 14.2 l/s 30 cfm
Air inlet thread size 1/4 "
Blows per minute 1200
Bolt size M20 mm 3/4" "
Box dimensions 75 x 220 x 230 mm 2,9 x 8,7 x 9,1 "
Clutch type Twin hammer / Oil Bath
Free speed 8400 rpm
Handle type Pistol
Length 200 mm 7.9 "
Maximum Torque (reverse) 1085 Nm 800 ft.lbs
Min. hose size 10 mm 3/8 "
Net weight 2.4 kg 5.4 lb
Power/weight ratio 452.1 Nm/kg 148.1 ft.lb/lb
Side to center 36 mm 1.4 "
Socket retainer Friction ring
Sound Power 104 db(A)
Sound pressure 93 db(A)
Square drive 1/2 "
Vibration 8.7 m/s²
Vibration ISO ISO-28927-2
Vibration uncertainty (K) 2.2 m/s²
Working Torque Range (fwd) 180 - 760 Nm 130 - 560 ft.lbs
