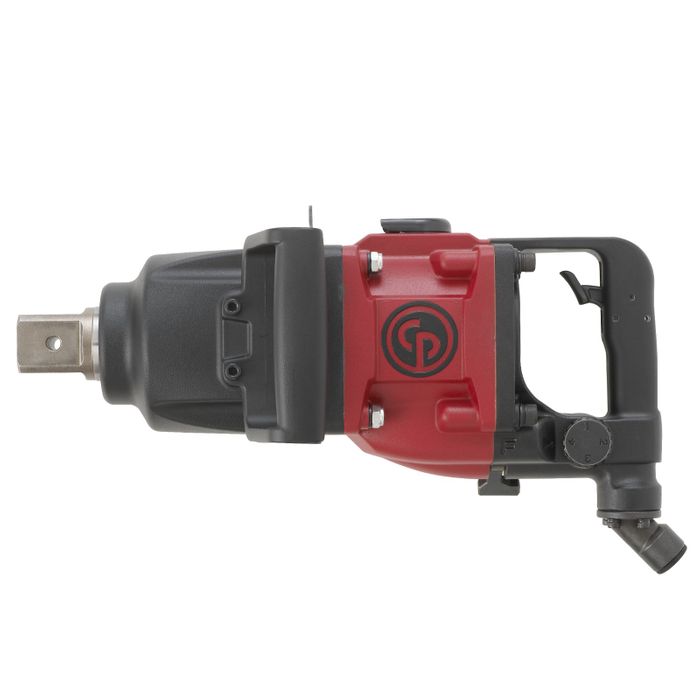

Impact Wrench 1 1/2'' Industrial CP

Stock Code:
CP6930-D35
Price:
$0.00 inc GST

Description

Benefits
• Powerful and durable twin hammer clutch with oil bath
• Robust aluminium housing with steel trigger and protective plate in the front
• Operator comfort and control with 4-positions regulator and side D-handle
Features
• 1-1/2" industrial impact wrench with hole type socket retainer
• Durable twin hammer clutch with oil bath
• Robust aluminium body & clutch housing
• Reversible D-type side handle
• Reversible and teasing steel trigger
• 4-settings power regulator
• Rotative air exhaust
• Removable suspension hook


Model CP6930-D35
Part number 6151590390
Actual air consumption 30 l/s 64 cfm
Air inlet thread size 1/2 "
Blows per minute 850
Bolt size M40 mm
Clutch type Twin hammer oil bath
Free speed 4300 rpm
Free speed air consumption 47 l/s 100 cfm
Handle type D-Handle Inside Trigger
Length 440 mm 17.3 "
Maximum Torque (reverse) 3900 Nm 2875 ft.lbs
Min. hose size 19 mm 3/4 "
Net weight 14.35 kg 31.6 lb
Power/weight ratio 271.8 Nm/kg 91 ft.lb/lb
Side to center 65 mm 2.56 "
Socket retainer Hole
Sound Power 112.5 db(A)
Sound pressure 101.5 db(A)
Square drive 1 1/2 "
VST2 100
Vibration 15.1 m/s²
Vibration ISO ISO-28927-2
Vibration uncertainty (K) 5 1/2 m/s²
Working Torque Range (fwd) 600 - 2,650 Nm 445 - 1,950 ft.lbs
