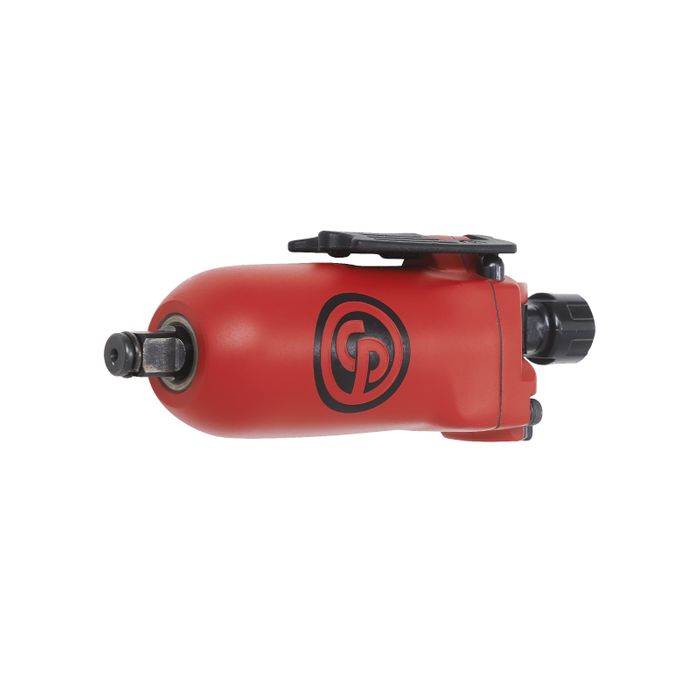

Mini Impact 3/8''

Stock Code:
CP7721
Price:
$541.06 inc GST

Description

Benefits
• 15% SMALLER than any other butterfly impacts
• Compact
• Lightweight
• Powerful
• Easy operation
• Durable
Features
• 5.5 in. / 140 mm length, provides easier access to hard to reach places
• 1.16 lbs. / 0.53 Kg
• 80 ft.lbs. / 110 Nm in reverse
• Double rocking dog mechanism & Aluminum housing
• Power regulator in the back: 3 positions on both sides
• Butterfly shift for forward / reverse
• Built-in 180° air inlet swivel
• Ideal tool for transmission and engine repair works, body panels, oil pans, ignitions, motor cycle repair and vehicle seats


Model CP7721
Part number 8941077210
Actual air consumption 2.9 l/s 6 cfm
Air inlet thread size 1/4 "
Average air consumption 0.7 l/s 1 1/2 cfm
Clutch type Rocking dog clutch
Free speed 15000 rpm
Handle type Butterfly
Length 140 mm 5 1/2 "
Maximum Torque (reverse) 110 Nm 81 ft.lbs
Min. hose size 10 mm 3/8 "
Net weight 0.53 kg 1.1 lb
Power/weight ratio 220 Nm/kg 73.6 ft.lb/lb
Side to center 40 mm 1.6 "
Socket retainer Friction ring
Sound Power 103 db(A)
Sound pressure 92 db(A)
Square drive 3/8 "
Vibration 4 m/s²
Vibration ISO ISO-28927-2
Vibration uncertainty (K) 1 m/s²
Working Torque Range (fwd) 9 - 80 Nm 6.6 - 59 ft.lbs
