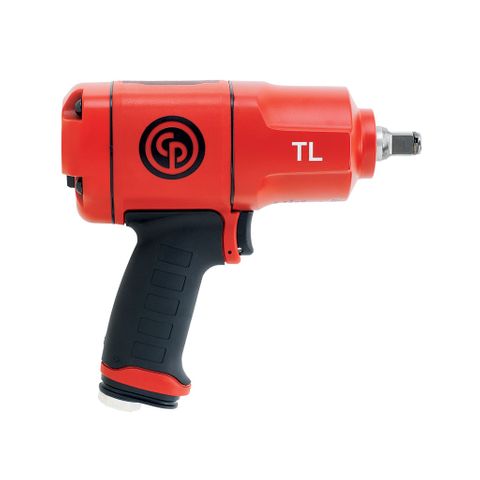

Impact Wrench 1/2'' CP Composite Torque Limited ft/lb
Description
Benefits
• Torque limited in forward: 60/70 ft. Lbs. - 90/100 Nm
• Full power in reverse
• One Hand Operation: 2 power setting positions
• Insulation & Comfort: Contoured comfort grip handle instead of TPR injected in handle
• Low sound level
• Suited for all light vehicle tire changing applications
Features
• 1/2" composite impact wrench with friction ring socket retainer
• 2 setting positions : one in Reverse and one Torque Limited in forward
• 60/70 ft. lbs. - 90/100 Nm in torque limited position in forward
• 920 ft.lbs - 1,250Nm of maximum torque in reverse
• Aluminum clutch & rear housings
• Thermo-plastic rubber injected in housing - Resistant to most chemicals used in workshops
• Universal & durable twin hammer mechanism
• Full teasing trigger
• 360° swivel air inlet
•
• The CP7748TL series is intended to be used as a “snugging” tool prior to final tightening with a calibrated torque wrench to reach the car manufacturer’s specified torque rating for wheel assembly.
• Torque results vary greatly depending on the type of wheel, air pressure, run time and many other factors.
Part number 8941077484
Model CP7748TL
Handle type Pistol
Square drive 1/2"
Working Torque Range (fwd) 66-70 ft.lbs 90-96
Maximum Torque (reverse) 920 ft.lbs 1250 Nm
Free speed 8200 rpm
Blows per minute 850
Net weight 4.8 lb 2.2 kg
Power/weight ratio 192.1 ft.lb/lb 568.2 Nm/kg
Length 7.8" 200 mm
Side to center 1 1/2" 38 mm
Average air consumption 5 1/2 cfm
Actual air consumption 22 cfm
Air inlet thread size 0.25 "
Min. hose size 3/8" 10 mm
Noise level 86 db(A)
Sound Power 97 db(A)
Vibration a (ISO-28927-2) 4.8 m/s²
Vibration K (ISO-28927-2) 1.5 m/s²
Socket retainer Friction ring
Clutch type Twin Hammer
Box dimensions 8.3*2.1*3 210*206*75
Over carton 17.9*9.1*16.5 455*230*418
