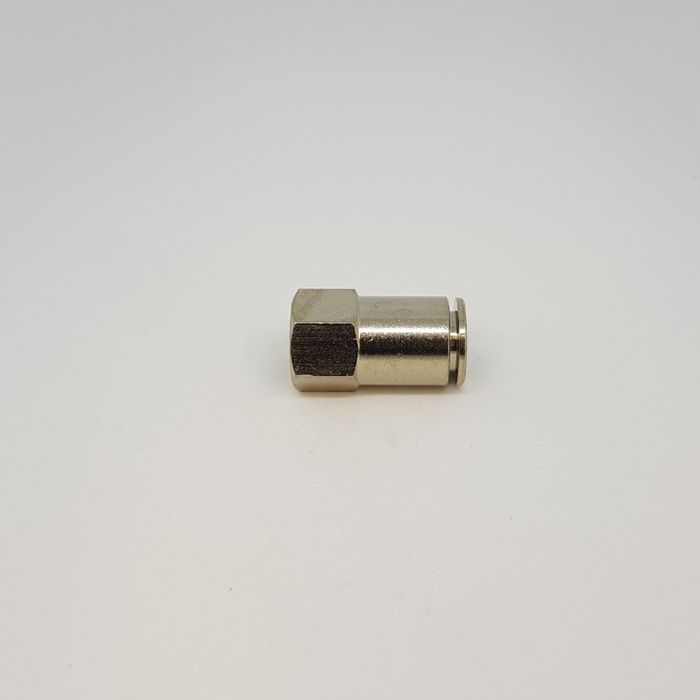

Straight Adaptor Female 8mm x 1/8 Metal 020066

Stock Code:
MPCF0801
Price:
$12.70 inc GST

Description

Female BSP Stud

Push-in Fittings Series R in Nickel Plated Brass

Technical Data
Fluid - Compressed Air
Pressure Range - 0,5 ÷ 12 Bar (vacuum resistance: 750mm. Hg)
Temperature Range - -20°C ÷ + 70°C
Parallel Threads - UNI - ISO 228/1 (BSP)
Taper Threads - UNI - ISO 7/1 (BSPT)
Metric Threads - ISO R / 262
Connection Tubes - Calibrated nylon, polyurethane and rilsan
Tube Tolerances - From Ø 3mm to 10mm ± 0,05mm ; Ø 12mm and 14mm ± 0,1mm
Materials:
- Body and release collar: Nickel plated brass
- Collet: Stainless Steel
- Seals: Nitrile rubber (NBR)


Series of push-in fittings with reduced dimensions and new collet and release collar. They are for connecting nylon and polyurethane tubes. Available in various configurations (studs, elbows, T, Y) and with threads. Gas pre-tefloned taper (BSPT) and gas parallel (BSP) with sealing o-ring. The stud threaded versions are standard with external and internal hexagonal key (for mounting in narrow places.)
