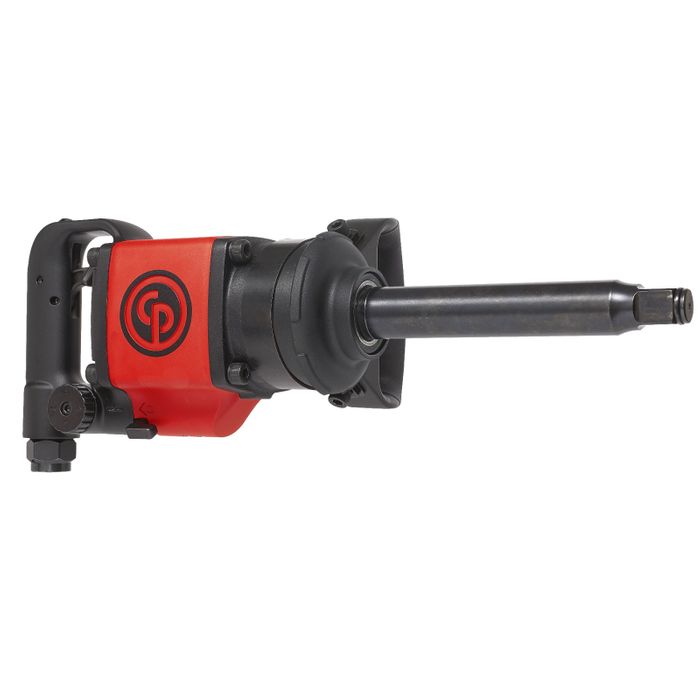

Impact Wrench 3/4" D Handle

Stock Code:
CP7763D6
Price:
$2,135.73 inc GST

Description

Benefits
• Great Performance
• Lightweight
• Comfort
• Easy to Use
• Rugged and Robust
• Easy Operation

Features
• 16.1 lbs. – 7.3 kg
• 1300 ft.lbs. / 1760 Nm in reverse
• Twin hammer mechanism
• Steel motor
• Intuitive Forward / Reverse lever & power regulator on both sides
• 4 position power settings on both sides
• Side handle with soft touch grip
• Down exhaust
• Aluminum housing
• Composite cover on the clutch housing
• Socket retainer ring


Model CP7763D-6
Part number 8941077637
Actual air consumption 19.3 l/s 41 cfm
Air inlet thread size 1/2 "
Box dimensions 475*190*130 mm 13,8*7,5*5,1 "
Clutch type Twin hammer
Free speed 6600 rpm
Free speed air consumption 26.6 l/s
Handle type D-Handle Inside Trigger
Length 445 mm 17.5 "
Maximum Torque (reverse) 1760 Nm 1300 ft.lbs
Min. hose size 13 mm 3/8 "
Net weight 7.3 kg 16.1 lb
Over carton 500*210*290 mm 19,7*8,3*11,4 "
Side to center 45 mm 1.8 "
Socket retainer Friction ring
Sound Power 109 db(A)
Sound pressure 98 db(A)
Square drive 3/4 "
Vibration 12 m/s²
Vibration ISO ISO-28927-2
Vibration uncertainty (K) 3.3 m/s²
Working Torque Range (fwd) 340 - 1450 Nm 250 - 1070 ft.lbs
