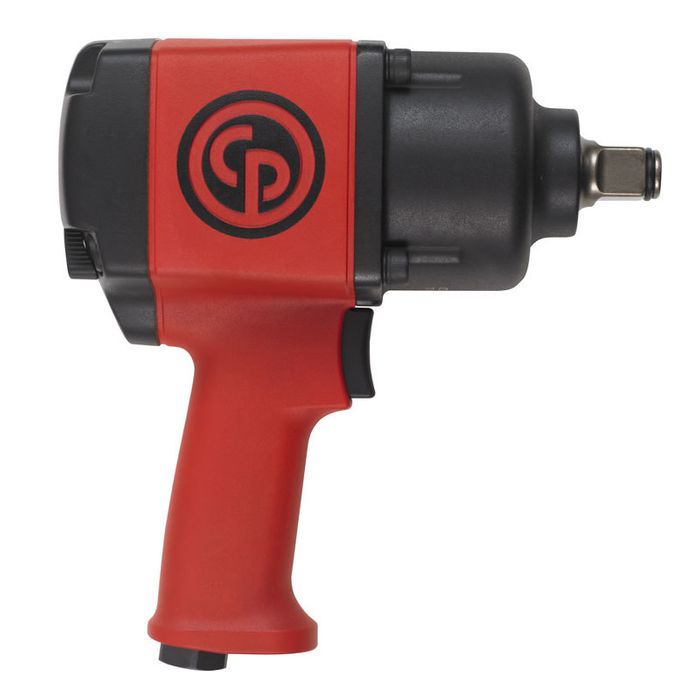

Impact Wrench 3/4'' 1200 FT/LB + Protective Cove

Stock Code:
CP7763+PC
Price:
$1,466.86 inc GST

Description

Benefits

The Chicago Pneumatic CP7763 is the best 3/4" impact wrench for Oil, Gas & Petrochemical or Mining requirements
The tool provides maximum operator comfort and control attributable to great engineering and ergonomics even at high torque levels
The tool exhibits the comfortable use thanks to low noise and vibration levels
It features with good durability

Features

Super duty 3/4" industrial impact mechanism
Twin hammer clutch
High power: 1,200 ft.lbs (1,627 Nm)

*Protective cover colour may vary.


Technical Specifications:

Part number 8941077630
Model CP7763
Handle type Pistol
Square drive 3/4"
Working Torque Range (fwd) 136-1288 Nm 100-950
Maximum Torque (reverse) 1630 Nm 1200 ft.lbs
Free speed 6300 rpm
Blows per minute 900
Net weight 5.25 kg 11.57 lb
Power/weight ratio 309.9 Nm/kg 103.7 ft.lb/lb
Length 229 mm 8.8"
Side to center 45 mm 1.8"
Average air consumption 3.5 l/s 7.5 cfm
Actual air consumption 14.2 l/s 30 cfm
Min. hose size 13 mm 1/2"
Noise level 96 db(A)
Sound Power 107 db(A)
Vibration (ISO-8662-7) 9 m/s²
Vibration a (ISO-28927-2) 10.4 m/s²
Vibration K (ISO-28927-2) 4.2 m/s²
Socket retainer Friction ring
Clutch type Twin hammer
