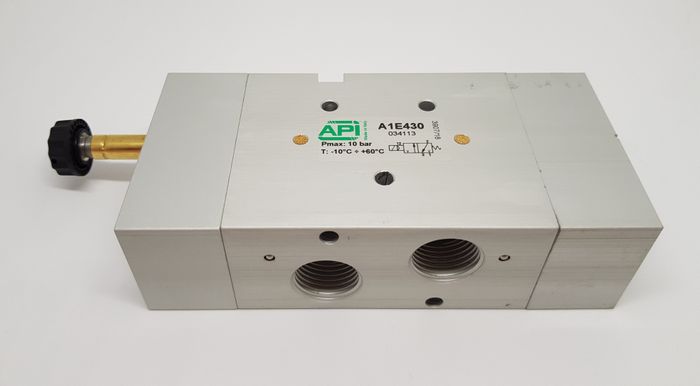

3.2 1/2" Solenoid/Spring Valve 034113

Stock Code:
A1E430
Price:
$299.06 inc GST

Description

3/2 NC

Valves series A1 - 1/2", 3/2 electrically operated

Technical Data
Fluid - Compressed filtered air with or without lubrication. Lubrication, if started, must be continued
Pressure Range - 0 ÷ 10 Bar
Temperature Range - -10°C ÷ + 60°C
Orifice - 15mm
Flow - 2900 NI/min at 6 bar with ?P 1 bar
Minimum Piloting Pressure - Spring return: 2,5 bar | Bistable: 1 bar | 3 Positions: 2,5 bar
Mounting - in any position
Manual Override - Bistable on solenoid pilot - Spring return on valve body
Response time (at 6 bar):
Solenoid/spring - Energizing: 60ms | De-engerizing: 36ms
Solenoid/solenoid - Energizing: 30ms | De-engerizing: 30ms
Materials:
Body - Anodized aluminum
Cover - Anodized aluminum
Spool - Hard aluminum anodized
Distancers - Aluminium
Seals - Hydrogenated Nitrile Butadiene Rubber (HNBR)

Series of spool valves, with static seals, high flow, for panel mounting.
