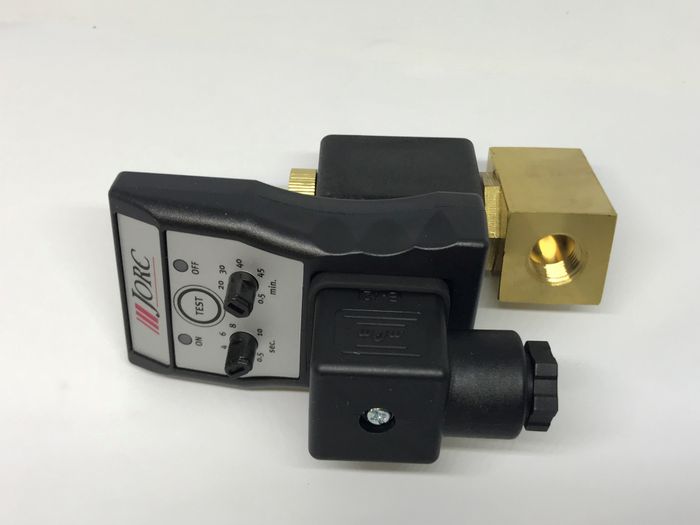

Auto Drain Timed Optimum 1/4" 230V

Stock Code:
1601
Price:
$421.48 inc GST

Description

The OPTIMUM timer controlled condensate drain is suitable for a wide range of compressed air applications including compressors, receivers, filters and refrigerated air dryers.

With an easily adjustable electronic timer, a direct acting solenoid valve, a large orifice and a brass body, this drain provides reliable compact condensate removal.

The OPTIMUM is easy to install, simple to adjust and rated for pressures up to 230 PSI. It includes a test switch, LED on/off indication and a serviceable valve. Most importantly, the large 4.5 mm orifice means it is perfect for difficult applications with high condensate flow rates and solid particulate contaminants.

Specifications

•Maximum compressor capacity Any size
•Pressure range 0 - 230 PSI
•Supply voltage options 240V (Other Voltages available with Coil Change)
•Medium temperature 1 - 55 °C
•Ambient temperature 1 - 55 °C
•Timer cycle range (On / Off) 0.5 - 10 seconds / 0.5 - 45 minutes
•Timer PCB SMD technology, ensuring consistency in production
•Timer cycle indication Bright LED illumination
•TEST feature Yes
•Valve type 2/2 way, direct acting
•Valve orifice 4.5 mm
•Valve seals FPM
•Inlet/outlet connections 1/4?
•Inlet connection height 0.4?
•Serviceable valve Yes
•Valve housing material Brass
•Power connection DIN 43650-A
•Environmental protection NEMA4 (IP65)
