CP85050 AIR/HYDRAULIC 15/25/50TONNE JACK

Stock Code:
8941085050
Price:
$5,305.73 inc GST

Description

Benefits

High Lifting Capacity
High Durability
Fast and easy operation controlled from the handle
Low Profile
Convenient
Easy maneuvering and to transport
Safety

Features

Maximum height: 18 1/2 in / 472 mm
Air powered piston
Includes 2 extensions for higher lifting - Stored on handle for transport
Piston and pump
Anti dust seals

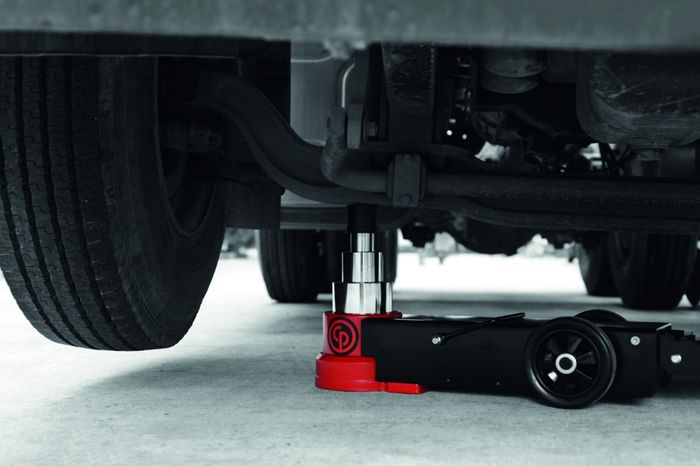

Ideal for easily accessing lifting points on low chassis trucks and buses
Convenient joystick controls
Cylinder mounted carrying handle
4 ¼ ft./ 1.3 m / long handle bar (1 piece handle) allows easy access to controls when fully positioned under vehicle
Handle bar locks in 3 positions: 45°, 90° & 180°
Large & soft rubber wheels

Model CP85050
Part number 8941085050
Box dimensions 850X300X260 1390X280X110 mm 33.5X11.8X10.2 54.7X11.0X14.3 "
Capacity 50/25/15 ton(s) 55.1 short ton(s)
Description CP85050 AIR HYDRAULIC JACK - 50 tons
Dimension A 160 mm 6.29677419354839 "
Dimension B 200 mm 7.88888888888889 "
Dimension C 282 mm 11.1573913043478 "
Dimension D 470 mm 18.5314285714286 "
Dimension D+E 555 mm 21.8636363636364 "
Dimension E 85 mm 3.33703703703704 "
Dimension F 222/283/352 mm 8.7/11.1/13.9 "
Dimension G 1430 mm 56.32 "
Dimension P 71 mm 2.79630769230769 "
Net weight 60 kg 132.285714285714 lb
UPC Code 015451767952
Wheel type Rubber
