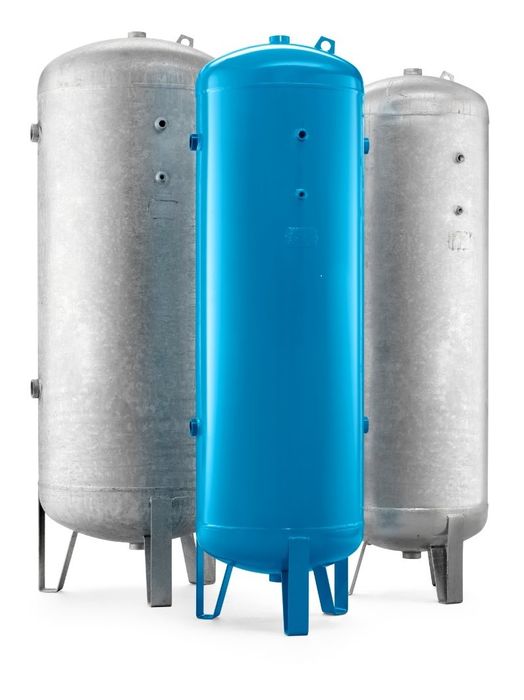

V270/11 Air Receiver Vertical 270Lt 11Bar Vitroflex

Stock Code:
4101000953
Price:
$2,364.87 inc GST

Description

Suitable for any application using compressed air:
• Storage function in order to handle high air consumption
• Stabilize pressure peaks and provide a stable air flow
• Perform a preliminary separation and removal of condensate

These vessels are treated with vitreous enamel, making them water and steam resistant. The complete reliability of this type of treatment is the result of the inorganic composition and the link created between the enamel and metal surface. After having been baked at 850°C, the enamel no longer absorbs water and fully protects the vessel against corrosion.

How to select the size of my receiver?

There is no one rule that fits all as some applications require larger air tanks because of the process.

However, two rules of thumb that can help to fine tune:

Your air receiver capacity should be at least 1/4 of your free air delivery expressed in m³/min.

Base yourself on the compressor’s motor power and calculate the capacity:

• Motor power in HP x 30
• Example: If you install a 10HP screw compressor, your receiver capacity should be minimally 300 litre

Correctly sizing your air receiver brings following benefits for your compressors’ operations:
• Less waste during unloading period
• Overall smoother operation
• Avoid mechanical stress on several components
