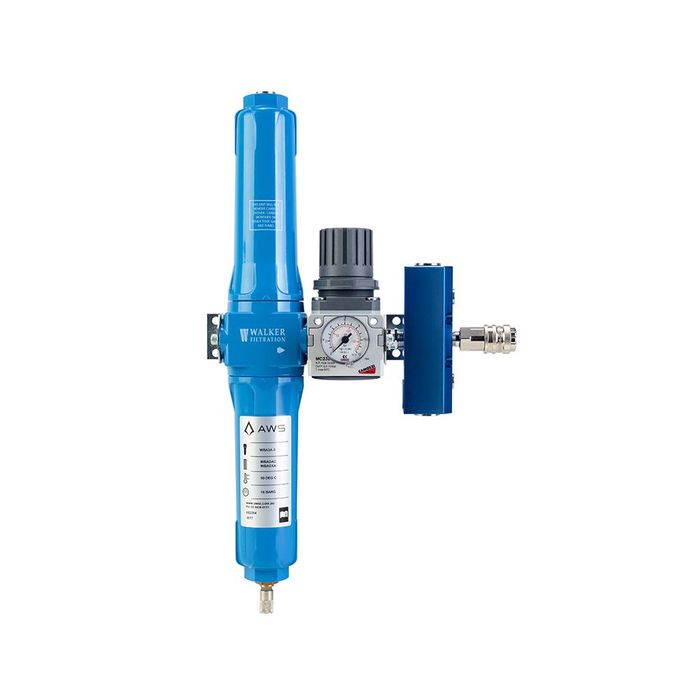

2 Stage Breathing Air Set C/W Manifold / Reg / Wall Mount 5 MAN
Description
Walker Filtration Breathable Air Systems | BA3022-2 to BA3051-4
Flow rates 25 scfm to 50 scfm
Due to the increasing demand for improved
environmental and safety control, Walker
Filtration have compiled a comprehensive
range of wall mounted and portable
breathable air systems.
Carefully researched and tested to ensure high levels of
performance and integrity, these breathable air filter products
can be installed where safe breathable compressed air is
required.
The filter packages offer filtration and oil removal efficiencies
down to 0.01 micron particulate size and maximum oil
carryover efficiencies to 0.003 mg/m³ (0.003 ppm) offering the
operator clean, particulate and liquid oil free air with the added
benefit of taste and odour removal for improved user comfort
and performance.
Applications and Industries: Diving, Welding, Shotblasting, Spray Painting, Tunnelling, Mining, Asbestos Removal, Tank Cleaning.
Specification
Particle removal 0.01 micron
Max. oil carryover @ 20°C 0.003 mg/m³ (0.003 ppm)
Max recommended temperature 25°C
Element change X1/DXA 8000 hours / 12 months
Element change DAC at least every 6 months
Max. working pressure 125 mbar
Filter thread: 3/8"
Flow: 32CFM
Number of Ports: 5
Set Contains: 0.01 micron coalescing and activated carbon filtration, Distribution Manifold, Regulator and mounting bracket
Technical Notes:
1. Based on Breathing Air Standard AS/NZS1715 requirements of 170 l/min (6 scfm/min) per man.
2. These systems do not remove toxic gases such as CO and CO2. Please contact Walker Filtration if you require toxic gas removal.
3. For application with higher flow rates, please contact Walker Filtration.
